PN FLEX

Pneumatic Manipulator PN Flex

Pneumatic manipulator festuring rope vertical arm. The PN Flex pneumatic manipulators are suitable for handling loads having their barycenter on the Z axis of the vertical arm. They allow flexible load picking/releasing movements.

"PN Flex" Versions

Column + Arm

column FLEX

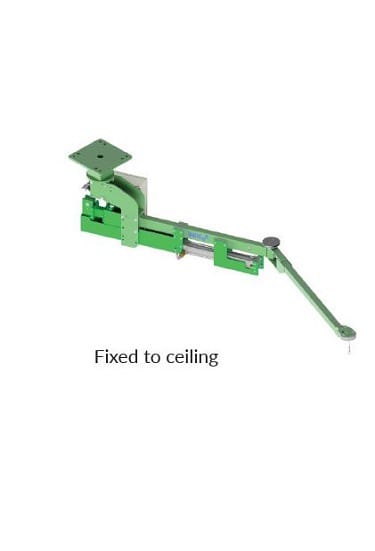

Overhead Arm

CEILING FLEX

Technical Features

  • Max load capacity: kg 80
  • Max lift speed: 45 m/mn
  • Control: pneumatic
  • Air pressure: 6,0
  • Bar Work Temperatures: from +5° to +50° C
  • Noise level: <70 dB
  • Main joint axis friction
  • Intermediate joint axis friction
  • Safety devices: in case of pressure failure slow descent till the floor

Available Options

  • Conformity to the ATEX Regulations for applications in controlled environment with danger of explosion,
  • Special painting Steel platform

PN Flex - Photo Gallery :
